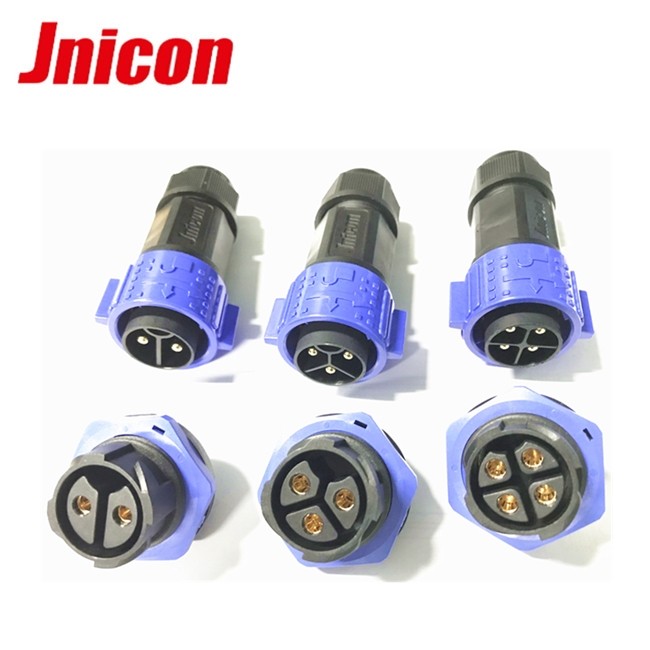

50Amps Field Assembly Waterproof Circular Connector With Screw Terminal
Description
Screw terminal high amps waterproof connector is a excellent option for you, no matter what's applications , such as industrial equipment, led lights, marine equipment, power battery etc, you could field install it on your application, just need to screw the wire on the plug and tighten it.
IP67 waterproof level could be well anti-waterproof and anti-dust, dust cap is available.
Specification Data
| Specifications: |
| Connecting mode: | Push locking screw terminal waterproof connector |
| Core number: | 2 pin,3 pin,4pin and more |
| Connector type : | Assembly type connector |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 connector |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm |
| Contact diameter | 1.0-2.4 |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Screw terminal |
| Flame-resistance: | UL94-V0 |
| Material: |
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Application industries: |
| Stage equipment | The smart grid | LED lighting |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Vehicle equipment | Ebike/motorcycle |
| Communications equipment | Heavy machinery | Transportation |
Main features
1. Advanced structure: IP67 self locking connector
2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional
3. Connection method: soldering(welding),screw terminal
4. Assembly: cable to cable ,male and female without cable
5. Certifications: UL, TUV, CE,ROHS,CQC.
6. Connection method: push pull locking type
RFQ
Q: How to buy your products?
A: You need to do as followings:
Confirm Current Rating and Number of Contacts
Confirm Connector and Contact Gender
Confirm Assembly style
Confirm Mating style ( series or parallel)
Confirm Cable OD size
Confirm Cable Length and Material.
Q: hello, i do not know what's kind of connector i need, but i need it for led connection.
A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.
