Assembly And Molded Cable Waterproof Circular Connector 3 Pole Female Adapter
Advantage / Feature of Waterproof Circular Connectors
- For protection class , IP67 and IP68 are optional , can use indoor and outdoor environment , even the wet environment for a long time
- Approved by CE , UL , TUV , CQC , ROHS etc , the quality of waterproof circualr connector is great and competitive in the market .
- For connector color , usually in black , but the yellow and blue in lock - ring is optional . People can take the suitable one according to your side .
- Different cable size and length are available , wecome to do customization . We will confirm the information with customer .
Application of Connecor
M19 waterproof circular connector from Jnicon , use the best material , whether it is housing , contact , cable . And the quality of most connector are approved by CE , UL , TUV , CQC , ROHS etc . so the quality is great . It 's competitive in the market .
For application of M19 connector , mainly apply in high current equipment , like lamp requiring high current , automotive charging , new energy , automation equipment , marine electronis , armarium , security and protection etc .
Connector's Datasheet / Specification
| Designation : | M19 3Pin Connector |
| Item | Specification |
| 1 .Electrical characteristics |
| Contact Resistance | 10mΩ max. |
| Insulation Resistance | 10MΩ min. |
| Withstand Voltage | 1500V AC There shall be no breakdown. |
| Rating / Current and Voltage | 20A / 300V |
| 2. Mechanical |
| Mating/Unmating force | Mating & Unmating Force: 10~30N |
| Life test | Mating & Unmating 500 cycles |
| 3. Material |
| Contact Plating | gold plating |
| Contact | Brass |
| Housing | PA66 |
| 4. Environmental |
| Flammability | UL 94V-0 |
| Operation temperature range | -30℃~+80℃ |
| Preservative temperature range | -40℃~+85℃ |

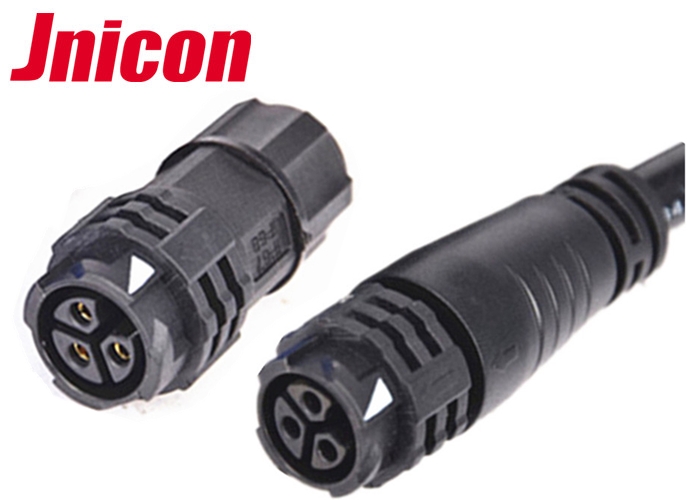

Picture / Photo Show - 3 Pin Waterproof Circular Connectors
FAQ
(1) I am interested in your product .
- Confirm the current and voltage first
- Confirm the socket , and the cable specification and cable OD
- Confirm the method of connecting cable , if the soldering is ok for you
- If you want the screw terminal , we have other corresponding connector . Just contact me , I will send you the corresponding information
(2) Can you provide the samples ?
- Yes , we can provide 1-3 set free samples for quality test , but the shipping cost should be paid
- We can also post it to your shipping agent in China if it's convenient for you .
(3) Can I pay the payment by RMB ?
- Sure , we accept RMB as the payment currency
