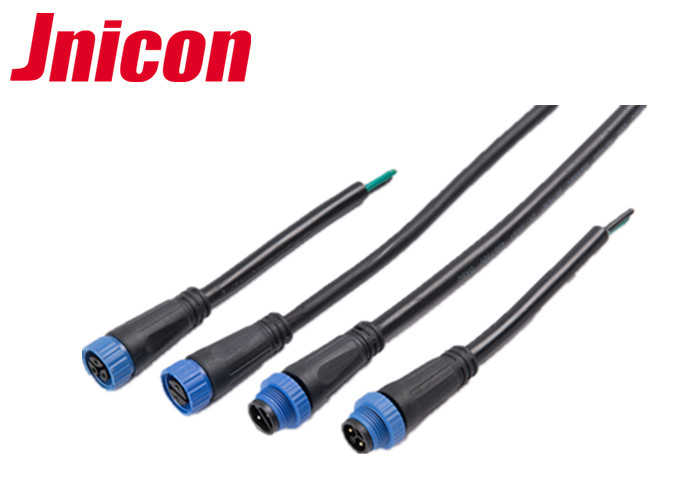

Jnicon 2 Pin Outdoor Cable Connector 300V 10A Underground IP68 Easy Assemble

Brand Name : Jnicon

Model Number : Outdoor Waterproof Connectors

Certification : TUV, UL, 3C, CE, ROHS, ISO90001

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pair/day

Delivery Time : 3-5 days

Packaging Details : 1.plastic bag 2.carton 3.As per customer's requirement

product : 2 Pin Screw Locking Waterproof Outdoor Connector

diameter range : MAX ∅9.0mm

protection level : IP68

Current rating : 10A

Voltage rating : 300V

contact diameter/number : ∅ 1.5mm

Contact Now

Jnicon 2 Pin Screw Locking Waterproof Outdoor Connector Outdoor Connector IP68

main features of 2 Pin Screw Locking Waterproof Outdoor Connector:

• current rating is 10A, and the voltage is 300V.
•​ Operate temperature: -45°C~+85°C
• The waterproof rating is IP68(screw locking).
• the current/ voltage of waterproof data connector are 10A/300V. the withstanding voltage is 1500V AC.
• High current application safety and stable wire. 24-16 AWG wire for 3 pin waterproof outdoor connector .
• 2-5 pins are available and for varies industrial demands.
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Plug/unplug locking style and push locking,easy to assemble.

The specifiction of Outdoor underground IP68 waterproof LED connector

SPECIFICATION
Designation3 pin male female waterproof power connector
Model No.58-100311-01
ItemSpecification
1. Electrical characteristics
1AContact Resistance10mΩ max.
1BInsulation Resistance10MΩ min.
1CWithstand Voltage1500V AC There shall be no breakdown.
1DRating10A 300V
2. Mechanical
2AMating/Unmating forceMating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N
2BLife testMating & Unmating 500 cycles
3. Material
3AContact Plating1u" gold plating
3BContact materialBrass (C3604)
3CHousing materialPA66
4. Environmental
4AFlammability UL 94V-0
4BOperation temperature range:-30℃~+80℃
4CPreservative temperature range:-40℃~+85℃


More detail:

• Vibration resistance,impact resistance,stretching resistance
• The connector widely used in LED lighting, LED streetlamp etc, have high waterproof degree--IP68.
• OEM/ODM are accepted .
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.

Application

M15 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,
landscape lights,underwater lights,equipments etc.

Outdoor waterproof connector have IP68 waterproof protection rating, it works reliably in door, outdoor and underwater.

Product detail picture

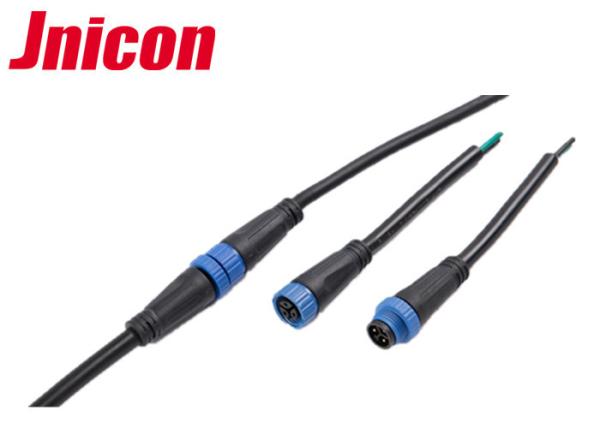

Jnicon 2 Pin Outdoor Cable Connector 300V 10A Underground IP68 Easy Assemble
